Pex Sanitary

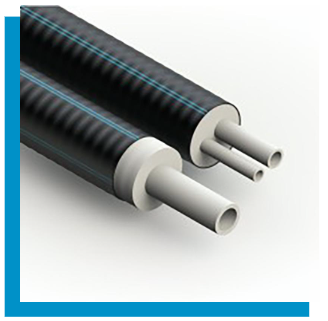

A pre-insulated hose system for portable hot water supply applications.

The pre-insulated, flexible pipe system is suitable for applications in the sanitary area.

To meet the requirements for higher pressures, a medium pipe from the SDR 7.4 pipe series (PN10 at 80 ° C) is used with the PEX 95-10 sanitary.

A pre-insulated hose system for portable hot water supply applications.

The pre-insulated, flexible pipe system is suitable for applications in the sanitary area.

To meet the requirements for higher pressures, a medium pipe from the SDR 7.4 pipe series (PN10 at 80 ° C) is used with the PEX 95-10 sanitary.

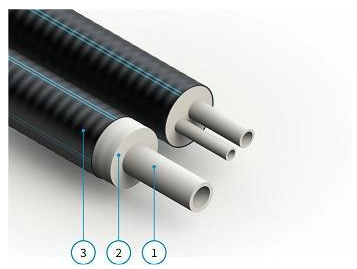

1. PE-Xa service pipe
2. Semi-flexible polyurethane foam
3. Duct Pipe

Max. continuos operating temperature .

+80°C

Max. operating temperature

+95˚C (Variable*)

Thermal conductivity

0.021 W/mK

Operating service

10 bar

Thermique isolation

PUR, CFC-free cyclopenthane-based
