Heat Flex
For heating applications
Cross-linked (peroxide method) polyethylene PE-Xa SDR 11 service pipe is used for HeatFlex pipes with maximum 6 bar operating pressure at 80˚C continuous operating temperature (application temperature profile according to EN 15632-2:2015). EVOH barrier layer for service pipe prevents oxygen penetration into heating network.
Highly efficient cyclopenthane-based PUR foam insulation gives an excellent thermal conductivity value of 0.021 W/mK.
To accommodate the varying heat loss requirements of the pipe network, HeatFlex pipes are available with a range of insulation thickness options to suit the required performance specification. The HeatFlex pipe system is manufactured in full accordance with EN 15632:2015 and OFI CERT ZG 200-1 Technical Specification.
Heat Flex
For heating applications
Cross-linked (peroxide method) polyethylene PE-Xa SDR 11 service pipe is used for HeatFlex pipes with maximum 6 bar operating pressure at 80˚C continuous operating temperature (application temperature profile according to EN 15632-2:2015). EVOH barrier layer for service pipe prevents oxygen penetration into heating network.
Highly efficient cyclopenthane-based PUR foam insulation gives an excellent thermal conductivity value of 0.021 W/mK.
To accommodate the varying heat loss requirements of the pipe network, HeatFlex pipes are available with a range of insulation thickness options to suit the required performance specification. The HeatFlex pipe system is manufactured in full accordance with EN 15632:2015 and OFI CERT ZG 200-1 Technical Specification.

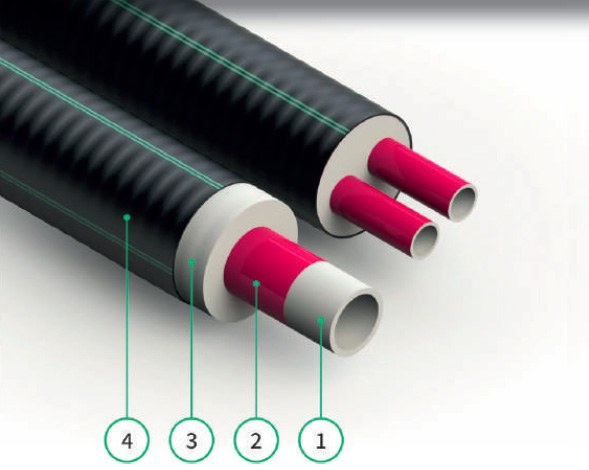

1. PE-Xa service pipe
2. Oxygen diffusion barrier
3. Semi-flexible polyurethane foam
4. Casing
Information
Max. continuos operating temperature (acc. to EN15632)
+80°C
Max. operating temperature
+95°C (variable)
Operating pressure
6 bar/80°C
Thermal conductivity
≤ 0,021 W/mK.
Service pipe
PE-Xa
Video
Installing a FibreFlex Pro press coupler and sleeved heat-shrink insulation.
Advantages
– Efficient heat loss properties
– Easy to install
– Optional fittings
– Cost-competitive with market competitors
Video
Installing a FibreFlex Pro press coupler and sleeved heat-shrink insulation.
Advantages
– Efficient heat loss properties
– Easy to install
– Optional fittings
– Cost-competitive with market competitors

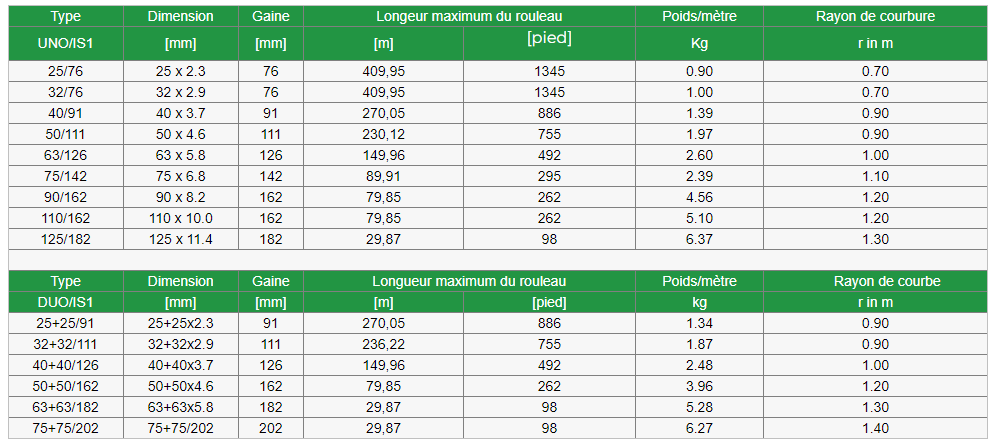

Pipe product range
